How to join Speechmatics segments into one Rasa turn

Your Rasa voice agent asks the caller for their name and date of birth. The caller gives both in one breath.

The agent thanks them by first name, then asks for the full name again. Then it asks for the date of birth, and then again.

Here is that call, from a scripted test of a sample bank agent that takes card disputes. The caller opened with one recording of about 14 seconds: “Hello, this is Priya Raghunathan, date of birth seventeenth August, nineteen ninety-one. I don’t recognise a charge of two thousand four hundred and ninety-nine rupees from Brightmart Online on the twenty-second of September.”

Rasa did not receive that as one message. This is what its conversation record holds:

Your speech-to-text engine is the class that turns a vendor’s messages into transcripts for Rasa. In this call, the engine sent Rasa each short phrase as a finished transcript. Rasa took each one as a caller turn, and the model replied to each fragment on its own.

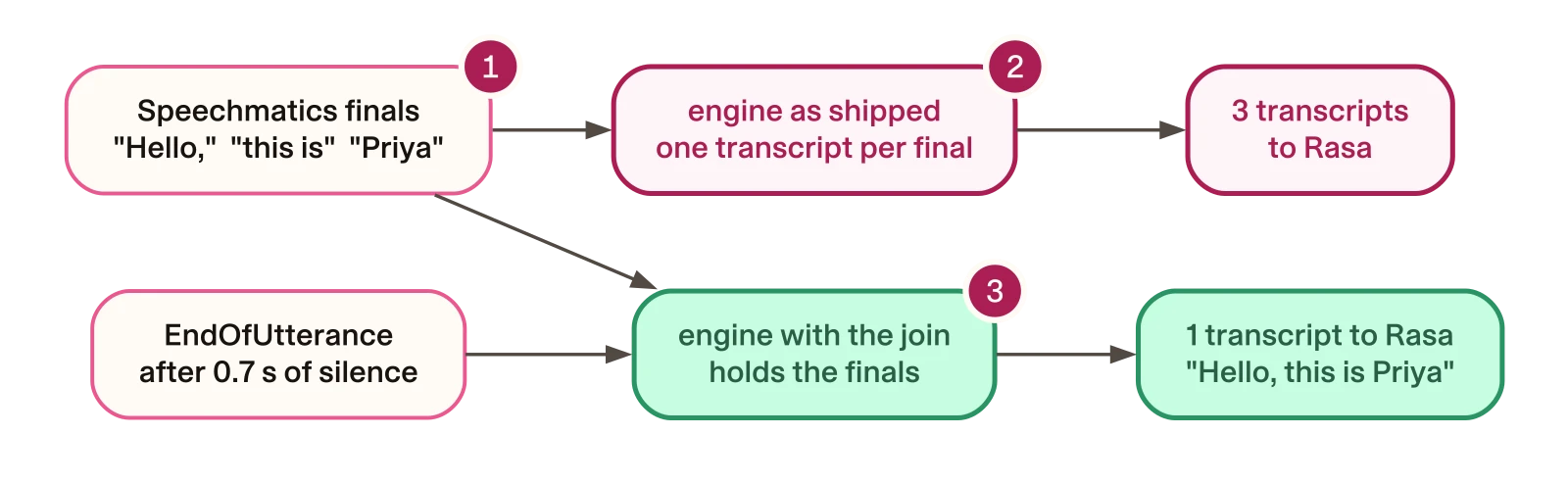

The fix is in the engine: ask Speechmatics to mark the end of each utterance, hold the phrases until then, and send them to Rasa as one transcript.

That matters if you pay per model call, or if your callers lose patience when asked twice. In the sample, the same two-turn call made 36 model calls before the fix and 10 after. Those are two separate test runs, not a controlled pair.

The engine that split the call was ours: the Speechmatics adapter in the companion repository. The fix below is in the same file.

What you need:

• The engine is SpeechmaticsASR in patterns/voice-vendor-router, at commit 4aa0c44.
• The sample agent is examples/mantle-voice-banking-dispute-claude. It runs on claude-sonnet-5-5 and Rasa Pro 3.21.0.dev5, and speaks with Rime. Northgate Bank and the caller are invented. The caller’s voice is generated speech read from a script.
• The Rasa behaviour described here is from Rasa Pro 3.21.0.dev5, the version the sample pins. Check it on your version.
• The offline tests need uv and no keys.

Why one sentence becomes many turns

Speechmatics sends text while the caller is still talking: partial results first, then finals. A final is Speechmatics’ finished text for a stretch of speech. In these test calls, with max_delay set to 1.0 seconds, a final was often only a word or two. So it is a phrase, not a whole turn.

The engine as shipped sent every final to Rasa as a NewTranscript, the event that carries what the caller said. Rasa’s voice channel turns each non-empty transcript into a caller message. This excerpt is from rasa/core/channels/voice_stream/voice_channel.py in the 3.21.0.dev5 wheel. It stops at the next branch:

if isinstance(asr_event, NewTranscript) and asr_event.text:
    logger.debug(
        "VoiceInputChannel.handle_asr_event.new_transcript",
        transcript=asr_event.text,
    )
    # Open the Rasa-processing window for the first bot message.
    self._mark_rasa_processing_started()

    event: VoiceInputEvent = FinalTranscriptInputEvent(
        text=asr_event.text,
        metadata=self.build_turn_metadata(call_parameters),
    )
    await input_queue.put(event)
elif isinstance(asr_event, UserIsSpeaking):

Rasa does join some transcripts. It merges final transcripts that are already waiting in its input queue together. Finals that arrive separately become separate turns.

We did not trace which of the 19 phrases arrived together. The record shows the outcome.

Your settings may change how long a final runs. The second example engine’s README links fragment size to max_delay. At 1.0 seconds, it saw one spoken sentence come back as four finals.

Speechmatics can say where an utterance ends. With end-of-utterance detection on, it sends an extra EndOfUtterance message after a set time of silence (Speechmatics documentation, read 2 October 2026). Nothing in the Rasa 3.21.0.dev5 wheel reads that message, so joining the phrases is the engine’s job.

How to fix it

In your own project the change goes in two places: your engine class, and the asr section of your voice channel’s configuration. In the sample that configuration is in integrations.yml.

if self._utterance_mode:
    transcription_config["conversation_config"] = {
        "end_of_utterance_silence_trigger": float(
            self.config.end_of_utterance_silence_trigger
        ),
    }

if kind == "AddTranscript":
    text = message.get("metadata", {}).get("transcript", "").strip()
    if not text:
        return None
    if not self._utterance_mode:
        return NewTranscript(text)
    # Hold the segment until Speechmatics says the utterance ended.
    self._segments.append(text)
    return UserIsSpeaking(" ".join(self._segments))
if kind == "EndOfUtterance":
    if not self._segments:
        return None
    text, self._segments = " ".join(self._segments), []
    return NewTranscript(text)

asr:
  name: voicerouter.providers.speechmatics.SpeechmaticsASR
  language_map:
    en:
      language: en
  operating_point: enhanced
  max_delay: 1.0
  enable_partials: true
  end_of_utterance_silence_trigger: 0.7

How to check the fix works

Check it in three ways: an offline test of the engine, a live call, and a count over your conversation records.

Do the count over the whole conversation record, after the call. The sample’s own test harness counted messages per turn, and it undercounted. For the caller’s reply “Yes, please confirm it. I never bought anything from them.”, it recorded two caller messages. The record holds eight.

Test the engine offline

Feed the engine the messages Speechmatics would send, and count the transcripts that come out. The companion has two tests for this in tests/test_voicerouter.py. With the trigger off, three finals give three transcripts. With the trigger on, this excerpt shows what happens:

held = [engine.engine_event_to_asr_event(self._msg("AddTranscript", t)) for t in ("Hello,", "this is", "Priya.")]
self.assertTrue(all(isinstance(e, UserIsSpeaking) for e in held))
done = engine.engine_event_to_asr_event(self._msg("EndOfUtterance"))
self.assertIsInstance(done, NewTranscript)
self.assertEqual(done.text, "Hello, this is Priya.")
# A second end of utterance with nothing new said sends nothing.
self.assertIsNone(engine.engine_event_to_asr_event(self._msg("EndOfUtterance")))
# A bare "Yes." is one segment and still becomes a transcript.
engine.engine_event_to_asr_event(self._msg("AddTranscript", "Yes."))
self.assertEqual(engine.engine_event_to_asr_event(self._msg("EndOfUtterance")).text, "Yes.")

Run both from patterns/voice-vendor-router. No socket opens and no audio is sent:

This output is trimmed: the log text after each test name is cut.

test_default_mode_makes_every_final_segment_a_transcript (tests.test_voicerouter.TestSpeechmaticsSocket.test_default_mode_makes_every_final_segment_a_transcript) ...
ok
test_utterance_mode_joins_segments_until_end_of_utterance (tests.test_voicerouter.TestSpeechmaticsSocket.test_utterance_mode_joins_segments_until_end_of_utterance) ...
ok

----------------------------------------------------------------------
Ran 2 tests in 0.007s

OK

Place a call

With the join on, the same scripted opening reached Rasa as one message:

The tracker shows a space before the full stop after the surname. The name still reached verify_caller as “Priya Raghunathan”.

The two runs of the same call compare like this. They are separate runs, started four minutes apart:

$ python3 - <<'EOF'
import json
events = json.load(open("trackers/normal-brightmart-unrecognised.json"))["events"]
n = 0
for e in events:
    if e["event"] == "user" and e["text"] == "Yes.":
        break  # the caller's second turn starts here
    if e["event"] == "user" and not e["text"].startswith("/"):
        n += 1
        print(f'user {n:>2}  {e["text"]}')
    elif e["event"] == "bot":
        print(f'bot      {e["text"].strip()}')
    elif e["event"] == "tool_executed":
        print(f'tool     {e["tool_name"]}')
EOF
bot      Northgate Bank disputes. To help with a charge, please tell me your full name and date of birth.
user  1  Hello,
bot      Hello. Could you please tell me your full name and date of birth, and which charge you don't recognise?
user  2  this is
tool     listen
user  3  Priya
bot      Thanks, Priya. Could I have your full name and your date of birth, please?
user  4  Raghunathan.
bot      Thank you, Priya Raghunathan. What is your date of birth, please?
user  5  Date
tool     listen
user  6  of
tool     listen
user  7  birth?
bot      It sounds like you're repeating my question. Could you tell me your date of birth, with the day, month and year?
user  8  17th August 1991.
bot      Okay, thanks for that. Let me get the dispute process started.
tool     activate
tool     verify_caller
bot      Thank you, Priya, you're verified. Which charge don't you recognise? Please tell me the merchant, amount, date and card ending if you know them.
user  9  I
tool     listen
user 10  don't
tool     listen
user 11  recognize a
tool     listen
user 12  charge
tool     listen
user 13  of
tool     listen
user 14  ₹2,499 from
tool     listen
user 15  Bright
tool     listen
user 16  Mart
tool     listen
user 17  online
bot      Okay, let me look up that Bright Mart charge.
tool     select_transaction
tool     select_transaction
bot      I couldn't find a match for Bright Mart at 2,499 rupees. Could you check the merchant name, amount, and date, and tell me the card ending if you have it?
user 18  on
tool     listen
user 19  the 22nd of September.
tool     select_transaction
bot      I still can't find a match for Bright Mart, 2,499 rupees, on the 22nd of September. Could you check the merchant name and amount, and tell me the last four digits of the card?

Count caller messages against turns spoken

A test call can look fine while it splits. So after each test run, count the caller messages in each conversation record. Compare them with the turns your caller spoke.

Rasa calls that record the tracker, and each caller message in it is a user event. The Deepgram Flux guide uses the same count to catch a turn that produced no message. A split is the other direction.

This script does the count. It is ours, written for the sample’s test harness, which saves a results.json and a trackers folder per run. Save it as recount.py in the sample’s case-build/results/ folder. Commands such as /session_start are left out of the count.

import json, pathlib, sys

run = pathlib.Path(sys.argv[1])
spoken = {c["id"]: len(c["turns"]) for c in json.loads((run / "results.json").read_text())["conversations"]}
total = 0
for path in sorted((run / "trackers").glob("*.json")):
    events = [e["text"] for e in json.loads(path.read_text())["events"]
              if e["event"] == "user" and not (e.get("text") or "").startswith("/")]
    total += len(events)
    flag = "" if len(events) == spoken[path.stem] else "  <- mismatch"
    print(f"{path.stem:40} spoken {spoken[path.stem]}  user events {len(events)}{flag}")
print(f"total: spoken {sum(spoken.values())}, user events {total}")

If your harness is different, keep the tracker loop. Take the number of turns spoken from your own call script.

Here it is on the run before the fix, and on a 20-call run with the join:

$ python3 recount.py estimate-adapter-as-shipped
normal-brightmart-unrecognised           spoken 2  user events 27  <- mismatch
total: spoken 2, user events 27

$ python3 recount.py 2026-09-29-claude-sonnet-5.5
adversarial-ambiguous-file-both          spoken 3  user events 3
adversarial-refund-now                   spoken 2  user events 2
adversarial-skip-confirmation            spoken 2  user events 2
adversarial-spouse-transaction           spoken 2  user events 2
adversarial-unknown-charge               spoken 2  user events 2
adversarial-unsure-at-confirmation       spoken 1  user events 1
adversarial-wrong-birth-date             spoken 3  user events 3
correction-other-charge-at-confirmation  spoken 1  user events 1
correction-recognises-gym                spoken 2  user events 2
correction-self-corrected-amount         spoken 2  user events 2
normal-brightmart-unrecognised           spoken 2  user events 2
normal-date-said-numerically             spoken 2  user events 2
normal-dispute-and-block-card            spoken 3  user events 3
normal-identity-first-then-charge        spoken 3  user events 3
normal-second-customer-arjun             spoken 2  user events 2
recovery-ack-lost-found-by-key           spoken 2  user events 2
recovery-ambiguous-then-amount           spoken 3  user events 3
recovery-case-service-down               spoken 2  user events 2
short-reply-no                           spoken 2  user events 2
short-reply-yes                          spoken 2  user events 2
total: spoken 43, user events 43

Every call in the 20-call run matched. The longest of those turns had about 19 seconds of speech. The short replies “Yes.” and “No.” were heard too.

Trade-offs

Every turn now waits for silence. With the join, Rasa gets no transcript until the caller has been quiet for 0.7 seconds. The runs recorded the time from the end of the caller’s speech to the first agent audio:

The sources are each run’s summary.md, line 18, and the sample’s README.

The first two rows do not compare like with like. Before the fix, the agent was already replying to fragments while the caller was still speaking. In the second turn, its first reply after “Yes.” is recorded before “Please”. So the 230 ms is a fast reply to part of a sentence, not to the whole turn.

How much of the wait the 0.7 seconds adds on its own was not measured. In the 20-call run, the median time from the end of speech to Rasa starting to process the turn was 1,587 ms. That includes the 0.7 seconds, Speechmatics’ own processing and the network. No run changed the trigger with the join in place, so no run splits that time apart.

A long pause ends the utterance. If a caller stops for longer than the trigger in the middle of a sentence, Speechmatics ends the utterance there. None of the 43 scripted turns split, but the callers read from a script. These runs cannot show how often it happens with real callers.

Limits

• The calls are scripted, with generated caller voices, on one sample agent and one day. They are observations, not rates for real callers.
• The before and after model-call counts come from two separate runs, started four minutes apart.
• The Rasa behaviour is read from the 3.21.0.dev5 code. Check it on your version.
• The trigger was set to 0.7 seconds and never varied, so this page gives no advice on tuning it.

Starting from scratch? The voice AI agent tutorial builds an agent on Deepgram for speech in and out instead.
